Laser Welding Machine Buying Guide: Costs, ROI, Selection

Introduction to Laser Welding Machines

In the realm of advanced manufacturing, laser welding machines stand as a pinnacle of precision and efficiency. These systems are designed to deliver unmatched accuracy in joining metals and thermoplastics, using concentrated laser beams to create strong, high-quality welds. Sigma Laser, a leader in precision laser welding systems, provides comprehensive solutions tailored to diverse industrial needs. This laser welding machine buying guide explores the technology, applications, and benefits of laser welding with our engineered systems, such as the Sidanus Light and Sirius Light series.

Understanding Laser Welding Technology

Laser welding technology works by focusing a high-energy laser beam onto the materials to be joined. The laser’s energy melts the material, forming a precise and clean weld upon solidification. Sigma Laser utilizes advanced fiber laser and CO2 laser technologies, each suited to specific industrial applications. Fiber laser welding is ideal for applications requiring deep penetration and high-speed welding, while CO2 lasers are preferred for non-metallic materials.

Our automatic laser welding systems, such as the Simass Base Unit and the Sidanus Fibre, integrate cutting-edge seam tracking technology and comply with ISO 9001 and DIN EN ISO 14732 standards, ensuring top-tier performance and reliability. The versatility of these systems allows for both manual and automated operations, providing flexibility across various production environments.

Typically, fiber lasers operate within the 1 µm wavelength range, offering high beam quality with M² values often below 1.5, which is crucial for applications requiring high precision. CO2 lasers, on the other hand, operate at a 10.6 µm wavelength and are effective for cutting and welding non-metallic materials. The power output for industrial laser welding systems can range from 500 W to over 10 kW, depending on the application requirements.

In terms of process parameters, laser welding speeds can range from 0.5 m/min to over 10 m/min, with penetration depths varying from 0.1 mm to several millimeters, depending on material thickness and laser power. The heat-affected zone (HAZ) is typically minimized, often less than 1 mm, which is advantageous for maintaining material properties near the weld.

Applications in Various Industries

Laser welding machines are employed across numerous sectors, enhancing production capabilities and product quality. The automotive industry, for instance, benefits from the precision and speed of fiber laser welding, essential for manufacturing lightweight yet robust vehicle components. The aerospace sector relies on our technologies, like the Super Pulse Technology (SPT), for welding critical components where integrity and strength are crucial.

In the electronics industry, the precision offered by Sigma Laser’s Sineo Fibre systems enables the delicate welding required for circuit boards and microelectronics. Additionally, our systems like the Sigomatic Pro are pivotal in medical device manufacturing, where precision and cleanliness are paramount.

With a focus on innovation and adaptability, Sigma Laser continues to lead the market, offering solutions that integrate seamlessly into existing manufacturing processes. Our Swivel Optics with Telescopic Lens and Motor-driven Turning Devices enhance the flexibility and efficiency of our laser welding systems, ensuring they meet the diverse needs of industrial buyers and procurement managers.

For those looking to invest in a laser welding machine, this buying guide emphasizes the importance of evaluating system capabilities, technical standards, and application-specific needs. Sigma Laser stands ready to consult with procurement managers, offering insights and tailored solutions to elevate their manufacturing operations.

It is critical to consider the compatibility of laser welding systems with various materials such as stainless steel (e.g., 304, 316 grades), aluminum alloys (e.g., 6061, 7075), and special alloys like Inconel and titanium, which are commonly used in high-performance applications. Understanding the material’s thermal conductivity and reflectivity is essential to optimize the welding process and achieve consistent results.

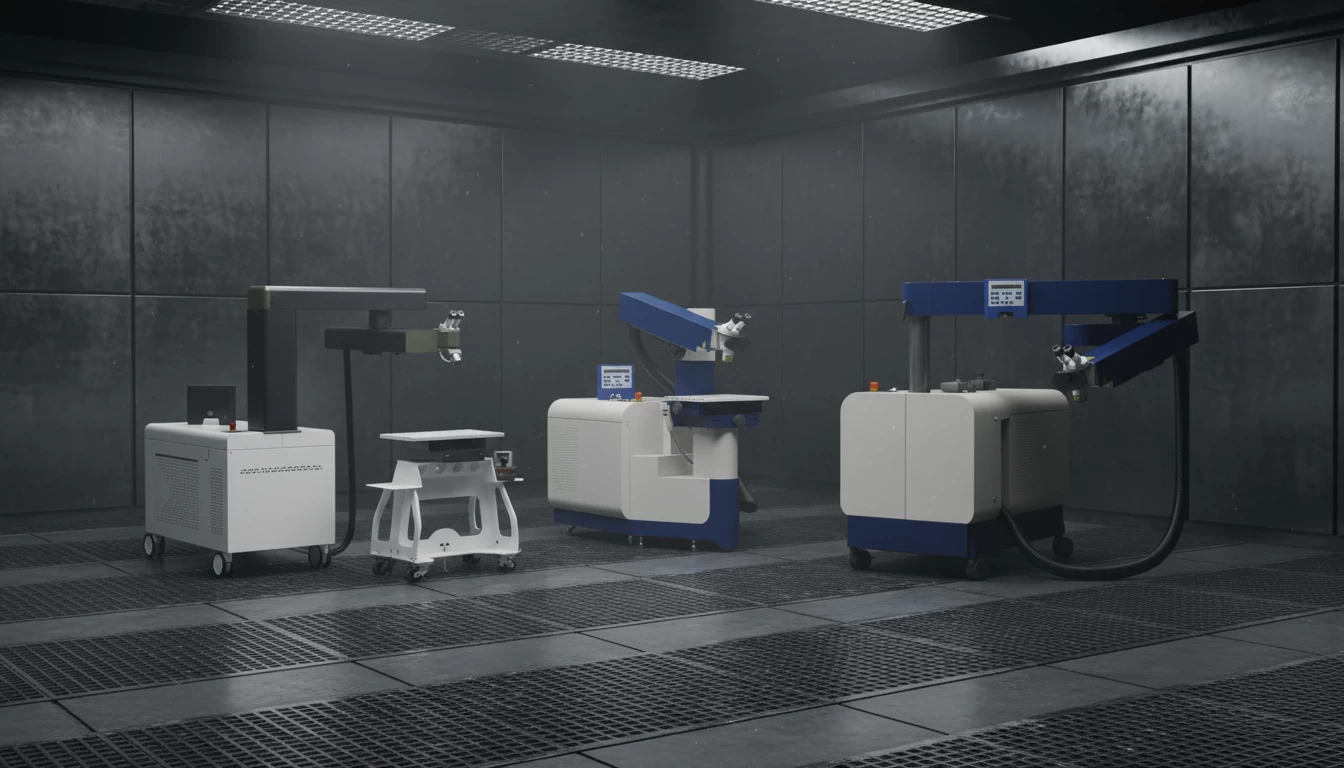

What Factors Should You Consider When Choosing a Laser Welding Machine?

In the realm of precision manufacturing, choosing the right laser welding machine is essential for optimizing your production processes and ensuring high-quality outcomes. As a key component of modern fabrication lines, laser welding machines provide unmatched precision and efficiency. This guide is designed to help procurement managers and CTOs make informed decisions by evaluating technical specifications and operational requirements tailored to their business needs.

Assessing Your Business Needs

The first step in selecting the right laser welding machine is to clearly understand your business requirements. This involves analyzing the specific applications, production volume, and material types you will be working with. For instance, if your production involves complex geometries or requires high precision, Sigma Laser’s Sidanus Light or Sineo Fibre models offer advanced capabilities.

• Application Specifics: Consider whether you need manual or automated laser welding systems. Automated systems, such as Sigma Laser’s Sigomatic Pro, provide greater consistency and efficiency for high-volume production. These systems often feature precision tolerances of ±0.1 mm, suitable for intricate assemblies.
• Production Volume: High-volume production might benefit from features like Super Pulse Technology (SPT) for enhanced control and speed, with typical welding speeds reaching up to 5 m/min depending on material and thickness.
• Material Compatibility: Determine if your materials are best suited for fiber laser welding or CO2 laser technologies. Fiber lasers are typically effective for stainless steel (e.g., 304, 316 grades), aluminum alloys (e.g., 6061, 7075), and titanium, offering penetration depths of up to 6 mm for certain metals.

Technical Specifications to Consider

Technical specifications are crucial when selecting a laser welding machine. Key factors include laser type, power output, and beam quality. Fiber lasers, like those in Sigma Laser’s Siega Fibre series, provide high efficiency and are ideal for a range of metals.

• Laser Type: Decide between fiber lasers and CO2 lasers based on your material needs. Fiber lasers, with wavelengths typically around 1070 nm, are generally more energy-efficient and easier to maintain, adhering to ISO 11145 standards for laser optics.
• Power Output: Higher power outputs are necessary for thicker materials or faster welding speeds, which are available in models like Sidanus Fibre. Typical power output ranges from 500 W to 6 kW, suitable for diverse industrial applications.
• Beam Quality: Superior beam quality is essential for precision welding, especially in industrial applications such as automotive or aerospace manufacturing. Beam quality is often characterized by an M² value close to 1.0 for optimal focusability and minimal heat-affected zones (HAZ), typically less than 0.5 mm in width.

Evaluating Operational Requirements

Operational requirements include factors like ease of integration, maintenance needs, and compliance with industry standards. Ensuring that your laser welding machine aligns with operational workflows is crucial for seamless integration into your production line.

• Ease of Integration: Machines like the Simass Base Unit are designed for easy incorporation into existing systems, reducing downtime during installation. Integration typically requires compatibility with industry-standard interfaces such as Ethernet/IP or PROFINET.
• Maintenance and Support: Consider the availability of maintenance support and the ease of obtaining spare parts. Sigma Laser offers comprehensive support for all its models, with recommended maintenance intervals adhering to DIN EN ISO 4063 guidelines.
• Compliance and Certification: Ensure that the machine meets industry standards such as ISO 9001 and DIN EN ISO 14732, which are essential for maintaining quality and safety standards. Compliance with IEC 60825-1:2014 is crucial for laser safety, ensuring that all safety measures are in place to protect operators.

By carefully considering these factors, you can select a laser welding machine that not only meets your current production needs but also provides flexibility for future expansion. Sigma Laser offers a range of solutions tailored to diverse industrial applications, ensuring that your investment delivers long-term value.

Cost Comparison of Different Laser Welding Machines

In the competitive realm of industrial manufacturing, selecting the right laser welding machine is vital for achieving both operational efficiency and cost-effectiveness. This laser welding machine buying guide provides a comprehensive breakdown of the costs associated with various models. By examining initial purchase costs, maintenance and operating expenses, and conducting a comparative analysis of popular models, procurement managers and CTOs can make informed decisions that align with their strategic objectives.

Initial Purchase Costs

The initial purchase cost of a laser welding machine is a significant factor that varies based on the type and specifications of the machine. Fiber lasers, such as the Sigma Laser Sidanus Fibre, generally have a higher upfront cost compared to CO2 lasers due to their advanced technology and longer lifespan. However, these costs are often offset by the increased efficiency and lower operating expenses associated with fiber lasers.

• Fiber Laser Machines: Although they have a higher initial cost, they offer precision and low maintenance, making them ideal for high-volume manufacturing environments. Typical power ranges are from 500W to 10kW, with a beam quality M² typically less than 1.2, allowing for high precision and minimal heat-affected zones (HAZ).
• CO2 Laser Machines: With a lower initial purchase cost, they are suitable for applications like cutting and engraving where precision is less critical. These machines commonly operate at wavelengths of 10.6 µm, and power levels can range from 1kW to 6kW.
• Automatic Laser Welding Systems: For instance, the Sigomatic Pro, though more expensive initially, can significantly reduce labor costs through automation. These systems can offer repeatability within ±0.01 mm, essential for complex assemblies.

Maintenance and Operating Costs

While the initial purchase cost is a one-time expense, maintenance and operating costs are ongoing and can significantly impact the total cost of ownership. Fiber lasers, such as the Siega Fibre, typically require less maintenance compared to their CO2 counterparts due to fewer moving parts and no need for gas refills. Additionally, fiber lasers are more energy-efficient, further reducing operating expenses.

• Energy Consumption: Fiber lasers consume less energy, leading to lower electricity bills over time. They typically operate at efficiencies greater than 25%, compared to CO2 lasers which are around 10-15% efficient.
• Maintenance Intervals: Extended maintenance intervals for fiber lasers reduce downtime and service costs, enhancing productivity. Maintenance schedules can be extended up to 10,000 hours of operation.
• Component Longevity: The robust design of machines like the Sineo Fibre ensures a longer component lifespan and fewer replacements. This is particularly important for applications requiring high duty cycles, such as automotive manufacturing.

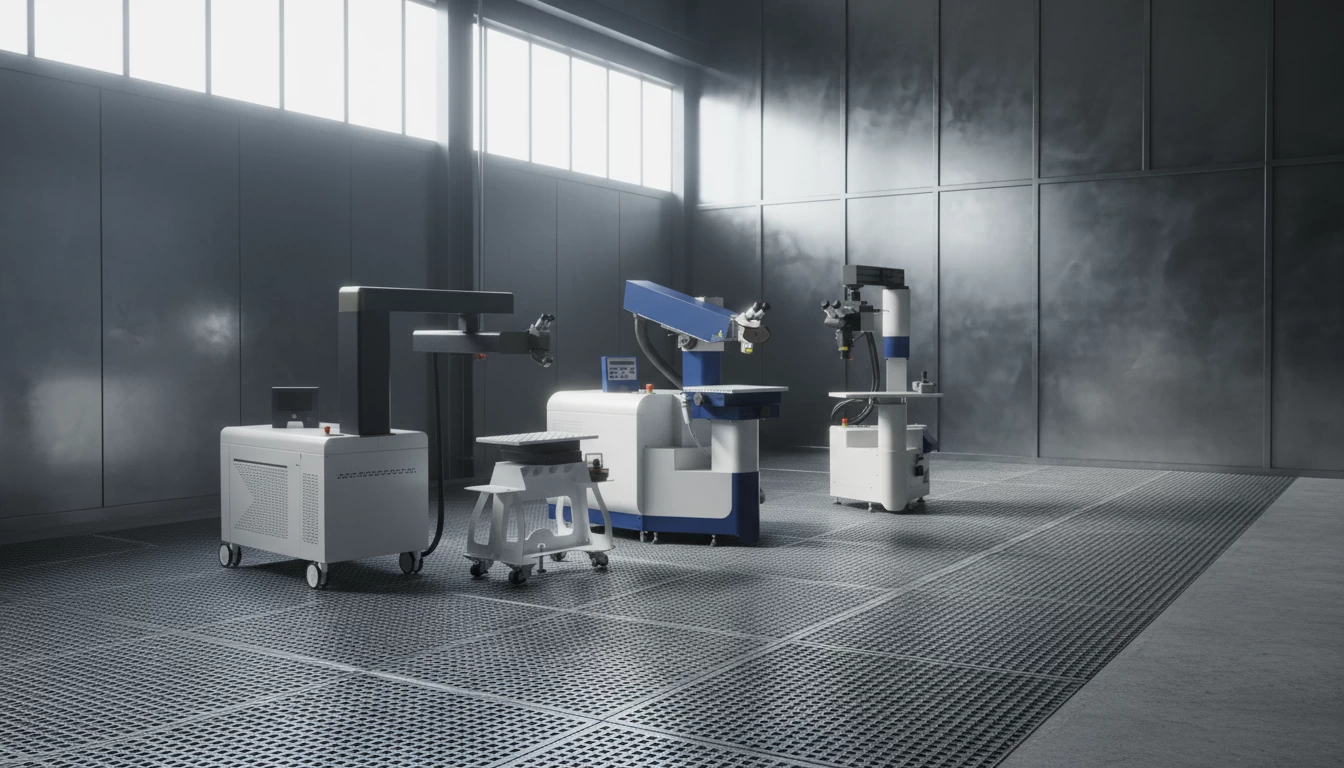

Comparative Analysis of Models

When comparing different laser welding models, it is essential to consider not only the cost but also the specific applications and industrial requirements. Sigma Laser offers a diverse range of models, each tailored to particular welding needs.

• Sidanus Light vs. Sidanus Fibre: The Sidanus Fibre, with its advanced fiber laser technology, is better suited for precision tasks, while the Sidanus Light offers a cost-effective solution for simpler welding applications. Fiber lasers can achieve welding speeds up to 10 m/min with penetration depths up to 10 mm in stainless steel.
• Simass Base Unit vs. Simass Rotate: The Simass Rotate, equipped with a motor-driven turning device, is ideal for complex, multi-axis welding tasks, whereas the Base Unit provides a straightforward solution for standard operations. The rotational capability allows for welding of cylindrical parts with tolerances within ±0.05 mm.

Ultimately, the decision to invest in a particular laser welding machine should be guided by a detailed evaluation of the initial purchase costs, the long-term savings from reduced maintenance and operating expenses, and the machine’s suitability for intended industrial applications. By leveraging Sigma Laser’s technology, such as Super Pulse Technology (SPT), manufacturers can achieve high-quality welds that meet stringent standards like ISO 9001 and DIN EN ISO 14732, ensuring both quality and compliance in their production processes.

Ensuring Safety in Laser Welding Operations

In the highly specialized field of industrial manufacturing, laser welding machines are crucial for achieving precision and efficiency. However, operating these sophisticated systems, such as Sigma Laser’s “Sidanus Light” and “Siega Fibre,” requires strict adherence to safety protocols to prevent accidents and ensure compliance with industry standards. This section provides a comprehensive safety guide for procurement managers and CTOs considering the integration of laser welding technologies like fiber laser and CO2 laser into their production lines.

Understanding Laser Safety Standards

Laser safety is governed by international standards designed to protect operators and ensure the safe operation of welding systems. Key standards include ISO 9001, DIN EN ISO 14732, and ISO 3834. These standards outline the requirements for maintaining quality management systems and ensuring that laser welding machines operate safely within manufacturing environments. Understanding these standards is crucial when consulting a laser welding machine buying guide to select the appropriate system for your facility.

Additional relevant standards include IEC 60825-1:2014, which specifies safety requirements for laser products, and ISO 11554, which outlines test methods for laser beam power, energy, and temporal characteristics. Compliance with these standards not only minimizes risks but also enhances operational efficiency, making it easier to achieve consistent weld quality with systems like the “Sigomatic Pro” or “Simass Base Unit.” It is essential to also consider the integration of seam tracking technology and automated systems to reduce human error and improve safety.

Personal Protective Equipment (PPE)

Personal protective equipment is a fundamental component of laser welding safety. Operators must be equipped with the right PPE to protect against potential hazards such as laser radiation and high temperatures. Key PPE includes:

• Laser safety goggles that match the laser wavelength used in your system, whether fiber laser (typically 1064 nm) or CO2 laser (commonly 10.6 µm).
• Heat-resistant gloves and clothing to protect against thermal exposure, particularly when welding at power levels up to 10 kW, which are common in industrial settings.
• Face shields and respirators, especially when dealing with materials that release hazardous fumes, such as zinc-coated steels or certain aluminum alloys.

Ensuring that operators are equipped with appropriate PPE not only complies with safety regulations but also fosters a culture of safety within the organization.

Safe Operating Procedures

Safe operating procedures are essential for minimizing risks associated with laser welding operations. These procedures should be clearly documented and regularly updated to reflect technological advancements and changes in industry standards. For instance, systems equipped with “Super Pulse Technology (SPT)” or “Swivel Optics with Telescopic Lens” may have specific operational guidelines that must be followed.

Key elements of safe operating procedures include:

• Comprehensive training for all operators on the specific laser systems they will be using, such as “Sirius Light” or “Sidanus Fibre.” Training should cover machine operation, emergency shutdown procedures, and troubleshooting.
• Regular maintenance schedules to ensure machines are functioning optimally and safely. This includes routine inspections of components like the “Motor-driven Turning Device” and “Swivelling Y Axis.” Maintenance should adhere to ISO 15614-11:2002, which specifies the qualification of welding procedures for metallic materials.
• Implementation of safety interlocks and automatic shutoff features to prevent accidental exposure to laser beams. This is particularly critical for high-power systems where beam quality (M² < 1.2) and focal length (commonly 100-200 mm) can result in significant energy concentration.

By establishing and enforcing these procedures, manufacturing facilities can significantly reduce the likelihood of accidents and ensure a safe working environment for all personnel involved in laser welding operations.

Process Control and Optimization in Laser Welding

In the realm of precision manufacturing, laser welding stands out for its ability to deliver high-strength joints with minimal distortion. For procurement managers and CTOs aiming to leverage this technology, understanding the nuances of process control and optimization is crucial. This section discusses key techniques that enhance efficiency and quality in laser welding, serving as a vital part of your laser welding machine buying guide.

Key Process Parameters

To achieve optimal results in laser welding, controlling certain process parameters is essential. These parameters include laser power, welding speed, and focal position. Each plays a critical role in determining weld quality and efficiency.

• Laser Power: Adjusting the laser power affects the depth of penetration and the speed of the welding process. For instance, Sigma Laser’s Siega Fibre offers precise control over power output, making it suitable for both thin and thick materials. Industrial laser power typically ranges from 500 W to 10 kW, with higher powers enabling deeper penetration for thicker materials.
• Welding Speed: The welding speed must be carefully controlled to ensure a balance between productivity and quality. Faster speeds may reduce heat input, impacting the weld’s robustness. Typical welding speeds range from 1 to 10 meters per minute, depending on material thickness and type.
• Focal Position: The exact positioning of the laser beam is crucial for achieving optimal weld geometry. The Swivel Optics with Telescopic Lens from Sigma Laser allows for precise focal adjustments. Maintaining a focal tolerance of ±0.1 mm is critical for ensuring consistent weld quality.
• Beam Quality (M²): The beam quality factor, M², is a measure of the beam’s focusability. For precision welding, an M² value close to 1 is ideal, indicating a high-quality beam capable of producing fine welds with minimal heat-affected zones.

Real-time Monitoring and Adjustments

Incorporating real-time monitoring and automatic adjustments can significantly enhance the performance of a laser welding machine. Advanced systems like Sigma Laser’s Sigomatic Pro employ seam tracking technology to adapt to variations in joint geometry and material inconsistencies.

Real-time data acquisition systems provide insights into the welding process, allowing for immediate adjustments in laser parameters. This capability is especially beneficial in automated laser welding systems, where consistency and reliability are paramount. Fiber laser technology, as used in the Sineo Fibre, ensures high precision and adaptability in demanding industrial applications. Additionally, compliance with IEC 60825-1:2014 ensures that safety standards are met during operation.

Quality Assurance Techniques

Implementing robust quality assurance techniques is essential for maintaining high standards in laser welding operations. Compliance with international standards like ISO 9001 and DIN EN ISO 14732 ensures that processes meet rigorous quality benchmarks.

• Non-destructive Testing (NDT): Techniques such as ultrasonic testing and X-ray inspection can be employed to verify weld integrity without damaging the product. These methods are particularly useful for materials like stainless steel and aluminum alloys, which are commonly used in industrial applications.
• Destructive Testing: While more invasive, methods like tensile testing provide valuable data on weld strength and performance under stress. This is critical for ensuring that welds meet the mechanical properties required by standards such as ISO 15614-11:2002.
• Process Documentation: Comprehensive documentation of welding parameters and conditions aids in traceability and continuous improvement. This documentation is crucial for meeting the requirements of ISO 3834, which governs quality requirements for fusion welding of metallic materials.

For procurement managers, selecting a laser welding machine that offers integrated quality assurance features is essential. Sigma Laser’s systems are engineered with these considerations in mind, ensuring both compliance and superior performance.

In conclusion, mastering process control and optimization in laser welding not only enhances efficiency but also ensures the highest quality standards. As you navigate your laser welding machine buying guide, consider the advanced capabilities and precision engineering of Sigma Laser’s solutions to meet your industrial needs.

Industrial Implementation of Laser Welding Machines

Integrating laser welding machines into existing manufacturing processes is a strategic move that enhances precision, efficiency, and flexibility. This section of our laser welding machine buying guide explores critical steps and considerations for successfully incorporating these advanced systems, such as Sigma Laser’s Sidanus Light and Sirius Light, into your production line.

Integration with Existing Systems

To ensure seamless integration of a laser welding machine into existing manufacturing workflows, it is crucial to evaluate the compatibility of the new equipment with current systems. This involves:

• System Analysis: Conduct a thorough analysis of your current production line to identify potential integration points and existing bottlenecks that a laser welding machine can resolve. Consider typical laser power ranges from 500W to 10kW, which can accommodate various material thicknesses and welding speeds.
• Technology Compatibility: Ensure the chosen laser technology, whether fiber laser or CO2 laser, is compatible with your materials and production requirements. Fiber lasers, with wavelengths around 1070 nm, are typically preferred for metals like stainless steel and aluminum alloys due to their high beam quality (M² < 1.5) and efficiency.
• Control Systems: Assess the compatibility of control systems. Sigma Laser offers advanced options like Swivel Optics and the Z-Axis Module that can be integrated with existing automation systems. Ensure compliance with IEC 60825-1:2014 for laser safety.
• Compliance: Verify that all equipment meets necessary standards, such as ISO 9001 and DIN EN ISO 14732, to ensure compliance and quality assurance. Additionally, consider ISO 15614-11:2002 for welding procedure qualification.

Training and Skill Development

The transition to automated laser welding systems necessitates a focus on workforce skill enhancement. Proper training ensures that operators can maximize the capabilities of machines like the Simass Rotate and Sineo Fibre. Consider the following:

• Operator Training: Implement comprehensive training programs for operators to familiarize them with laser safety protocols and machine operation. Training should cover aspects such as maintaining beam quality and understanding the heat-affected zone (HAZ), typically limited to a few millimeters for precision applications.
• Technical Support: Leverage Sigma Laser’s technical support for ongoing assistance and updates on software improvements or machine upgrades. Regular updates can enhance machine precision, often achieving repeatability within ±0.05 mm.
• Skill Certification: Encourage certification through recognized bodies like the American Welding Society to standardize skills across the team. Certification ensures adherence to industry standards and enhances operational safety.

Scalability and Future Expansion

One of the key advantages of adopting laser welding technology is its scalability. Industrial applications often demand adaptability to evolving production requirements:

• Modular Design: Choose laser welding machines with modular capabilities, such as Sigma Laser’s Simass Slide, which allows for easy upgrades and reconfiguration. Modular systems can be expanded to increase power output or add additional axes of motion as needed.
• Automation Potential: Future-proof your production line by selecting systems capable of integrating with robotic automation, enhancing throughput and reducing labor costs. Consider systems that support Industry 4.0 standards for smart manufacturing.
• Long-term ROI: Consider the long-term return on investment. Automatic laser welding systems can significantly lower production costs by minimizing waste and increasing efficiency. Typical energy savings can reach up to 30% compared to traditional welding methods.
• Industry Benchmarking: Regularly compare your systems with industry leaders like Trumpf and IPG Photonics to ensure competitive performance. Benchmarking should include assessments of beam quality, system uptime, and maintenance requirements.

By following these strategic considerations, procurement managers and CTOs can ensure a successful integration of laser welding machines, driving innovation and efficiency within their manufacturing processes.

Challenges and Best Practices in Laser Welding

Laser welding is a precise and efficient method commonly employed in modern manufacturing processes across various industries, including automotive, aerospace, and electronics. By utilizing advanced systems such as Sigma Laser’s fiber laser technology, companies can achieve superior weld quality and productivity. However, like any sophisticated technology, laser welding introduces specific operational challenges that require strategic solutions to maintain efficiency and quality.

Common Operational Challenges

In industrial settings, the deployment of a laser welding machine can present several challenges. Key issues include:

• Material Compatibility: Different materials respond distinctively to laser welding, necessitating a thorough understanding of material properties. For instance, the high reflectivity of aluminum and copper can lead to inefficient energy absorption. When welding stainless steel (e.g., AISI 304) or titanium alloys (e.g., Ti-6Al-4V), careful consideration of laser parameters is crucial to avoid issues such as cracking or porosity.
• Joint Preparation: Inadequate joint preparation can result in suboptimal weld quality. Ensuring precise alignment and cleanliness is crucial, particularly in automated laser welding systems. According to ISO 15614-11:2002, joint tolerances should typically be within ±0.1 mm to ensure optimal weld integrity.
• Heat Management: Excessive heat can lead to warping or distortion in thinner materials. Effective heat control strategies are essential to mitigate such effects. For instance, maintaining a controlled heat input, typically below 10 J/mm, can minimize the heat-affected zone (HAZ) and preserve material properties.
• Equipment Calibration: Regular calibration of the laser welding machine and its components, such as the Z-Axis Module and Swivel Optics, is vital for maintaining consistent performance. The beam quality (M²) should be routinely checked to remain below 1.5 for precision applications.

Best Practices for Efficient Operations

To address these challenges and ensure optimal performance of your laser welding systems, consider the following best practices:

• Select the Right Laser Type: Choose between fiber laser and CO2 laser based on the specific application requirements. Fiber lasers are often preferred for their high energy efficiency and reduced maintenance needs. Typical power ranges for industrial fiber lasers are between 500 W to 6 kW, with wavelengths around 1070 nm.
• Implement Seam Tracking Technology: Utilize advanced seam tracking to enhance weld precision and reduce the likelihood of defects, especially in complex assemblies. Systems with a positional accuracy of ±0.05 mm are recommended for high-precision tasks.
• Regular Maintenance and Calibration: Routine maintenance and accurate calibration of components like the Simass Base Unit and Swivelling Y Axis ensure prolonged machine life and optimal weld quality. According to IEC 60825-1:2014, safety checks should also be part of the maintenance routine to ensure compliance with laser safety standards.
• Adopt Automation: Incorporate automated laser welding solutions for consistently high-quality welds and increased operational efficiency. Automated systems can achieve welding speeds up to 10 m/min, significantly enhancing throughput in high-volume production environments.

Case Studies of Successful Implementations

Several leading manufacturers have successfully tackled these challenges by integrating Sigma Laser’s advanced welding solutions. A European automotive giant implemented the Sirius Light system, achieving significant reductions in cycle times and weld defects. Another example is an aerospace component manufacturer that adopted the Sidanus Fibre, which enhanced their production capabilities by accommodating complex geometries with precise control.

By following these insights and leveraging Sigma Laser’s cutting-edge technologies, manufacturing engineers, procurement managers, and technical buyers can make informed decisions. For more detailed guidance, refer to our comprehensive laser welding machine buying guide.
