Laser Welding Focal Length: Optimize Depth and Power

What is the Optimal Focal Length for Laser Welding?

Understanding Focal Length

In precision manufacturing, the focal length in laser welding is a critical parameter that defines the distance from the laser lens to the focal point where the beam is most concentrated. This precise focus is essential for maximizing power density on the material surface, ensuring optimal weld penetration and quality. At Sigma Laser, systems like the Sidanus Light and Sirius Light are engineered with advanced optics to facilitate precise focal length adjustments, catering to diverse industrial welding requirements.

The focal length plays a pivotal role in determining the depth of focus, directly influencing the stability and consistency of the weld seam. An optimal focal length ensures that laser energy is efficiently concentrated, resulting in superior weld quality and minimized thermal distortion. This is particularly crucial in applications requiring high precision, such as in the aerospace and automotive sectors, where weld integrity is non-negotiable.

Typical focal lengths in industrial laser welding range from 100 mm to 300 mm, depending on the application and material. The beam quality, often quantified by the M² factor, should be close to 1.0 for high precision applications, as outlined in ISO 11146. For instance, a Nd:YAG laser with a wavelength of 1064 nm, commonly used in precision welding, can achieve optimal results with a focal length around 150 mm for thin materials, ensuring a small heat-affected zone (HAZ) and minimal distortion.

Selecting the right focal length requires balancing these factors for each specific welding scenario.

Factors Influencing Optimal Focal Length

Selecting the right focal length involves understanding several key factors, including:

• Material Type: Different materials, such as stainless steel, aluminum, and titanium, have unique absorption characteristics that influence the ideal focal length. For instance, reflective materials like aluminum may require a shorter focal length to enhance power density. Common stainless steel grades like 304 and 316 are often welded with a focal length that balances penetration and surface finish, typically around 150 mm to 200 mm.
• Welding Application: The nature of the application—whether it’s butt welding, overlap welding, or fillet welding—dictates the focal length needed to achieve desired weld penetration and seam quality. Systems like the Swivel Optics with Telescopic Lens at Sigma Laser allow for seamless adjustments tailored to specific applications. For example, butt welding of thin sheets may require a longer focal length to ensure consistent penetration across the seam.
• Beam Mode and Quality: The mode of the laser beam (e.g., Gaussian, flat-top) and its quality can affect focal length determination. High beam quality, as achieved with Sigma Laser’s Super Pulse Technology (SPT), enables deeper penetration with shorter focal lengths. The M² value, ideally close to 1.0, ensures that the beam remains focused over a longer distance, crucial for maintaining weld quality at varying depths.
• Welding Speed: Faster welding speeds might necessitate a slightly adjusted focal length to maintain consistent weld quality and depth of focus. Typical welding speeds range from 0.5 m/min to 5 m/min, depending on the material and thickness, with adjustments made to the focal length to accommodate changes in thermal input and cooling rates.

By understanding these factors, welding engineers can make informed decisions on focal length settings, ensuring the laser welding process is optimized for both efficiency and quality. Sigma Laser’s integration of advanced features such as the Motor-driven Turning Device and Swivelling Y Axis further enhances the adaptability of our systems for complex industrial applications, adhering to standards like ISO 9001 and DIN EN ISO 14732.

Operational constraints such as the maximum allowable deviation in focal positioning, typically ±0.1 mm, are crucial for maintaining repeatability and precision in high-stakes industries. Compliance with safety standards like IEC 60825-1:2014 ensures that laser systems are operated within safe exposure limits, protecting both operators and equipment.

Values are typical for industrial laser welding and may vary by system and application.

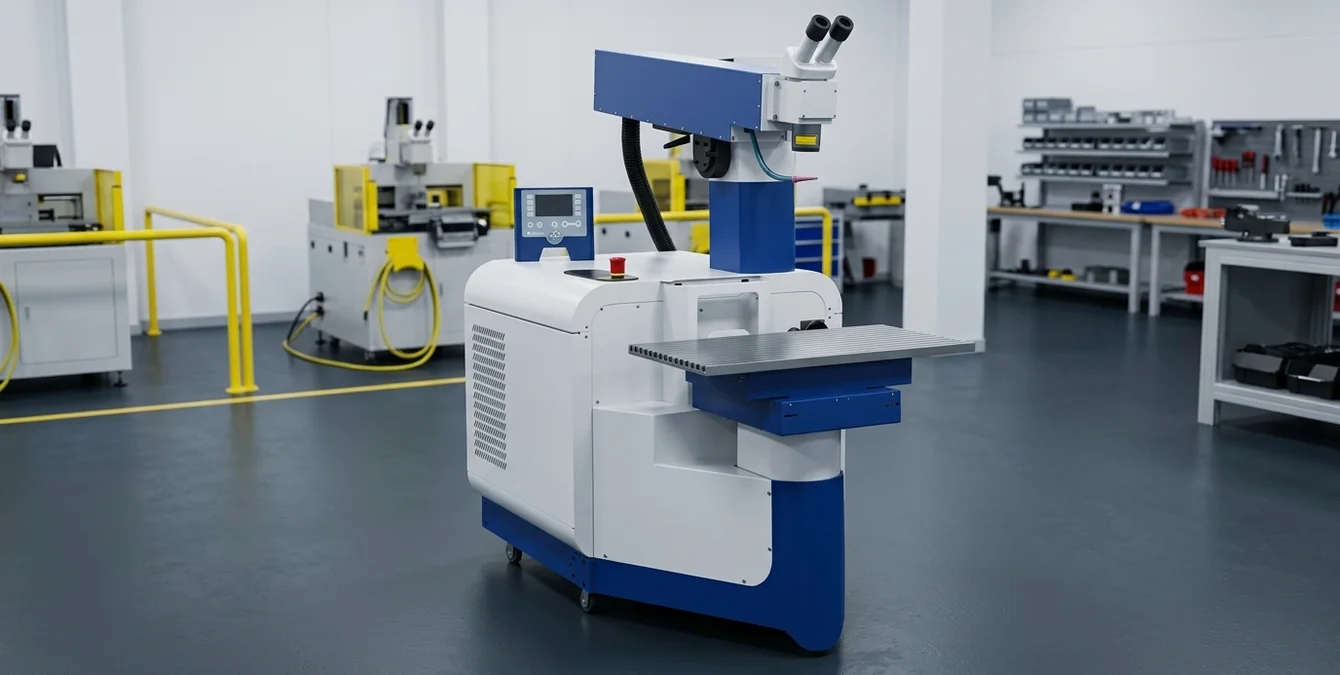

How Does Focal Length Affect Laser Welding Precision?

Precision in Laser Welding

In the world of industrial laser welding, precision is paramount. At Sigma Laser, precision is engineered into every product, from the Sidanus Light to the Sineo Fibre. The focal length plays a critical role in determining the precision of laser welds. By adjusting the focal length, engineers can control the depth of focus, which directly influences the power density and, consequently, the weld penetration. This capability allows for the customization of welds to meet specific material and thickness requirements, ensuring superior weld quality.

Typically, industrial laser systems operate with power ranges from 500W to 10kW, with wavelengths around 1064 nm for fiber lasers. The beam quality, often represented by the M² value, ideally remains below 1.5 to maintain high precision. These parameters are crucial when considering the focal length adjustments needed for specific applications.

Impact of Focal Length on Precision

Adjustments to the laser welding focal length can either enhance or diminish welding precision. A shorter focal length increases power density, resulting in deeper weld penetration ideal for thick materials. Conversely, a longer focal length offers a broader depth of focus, which is beneficial for fine-detail work on thinner materials. At Sigma Laser, the integration of Swivel Optics with Telescopic Lens technology allows for precise control over the focal length, offering unparalleled flexibility in welding applications.

For welding engineers and procurement managers, understanding the impact of focal length adjustments is vital for optimizing weld quality. By leveraging Sigma Laser’s advanced technology, such as the Super Pulse Technology (SPT), manufacturers can achieve consistent, high-quality welds across various applications, from automotive to aerospace. This precision not only ensures compliance with industry standards like ISO 9001 and DIN EN ISO 14732 but also enhances overall operational efficiency.

In practical terms, the focal length affects the heat-affected zone (HAZ) and welding speed. For instance, a shorter focal length may result in a narrower HAZ and higher welding speeds, typically between 1 to 10 m/min, depending on material thickness and type. Materials such as stainless steel (e.g., 304, 316) and aluminum alloys (e.g., 6061, 7075) are commonly welded using these techniques, with penetration depths ranging typically from 0.5 mm to 10 mm.

Engineering constraints such as thermal distortion and metallurgical changes must be considered, especially in high-precision applications. Compliance with standards like ISO 15609-4:2009 and DIN EN ISO 15614-11:2002 ensures that welding processes are both safe and effective, adhering to stringent quality control measures.

Why is Depth of Focus Important in Laser Welding?

Defining Depth of Focus

In laser welding, the depth of focus is a critical parameter that defines the range over which the laser beam maintains a sufficiently small spot size to ensure effective welding. It represents the distance over which the power density of the laser remains high enough to achieve the desired weld penetration. For manufacturers using Sigma Laser’s advanced systems like the Sidanus Light or Siega Fibre, understanding and optimizing this parameter is essential for achieving high-quality welds.

Typically, the depth of focus is influenced by the laser’s wavelength and beam quality (M²). For instance, a laser with a wavelength of 1064 nm, commonly used in Nd:YAG or fiber lasers, and a beam quality of M² < 1.2, can achieve a depth of focus that is suitable for precision applications. The depth of focus also affects the heat-affected zone (HAZ), which should be minimized to maintain the mechanical properties of materials such as AISI 304 stainless steel or 6061 aluminum alloy.

Depth of Focus vs. Focal Length

Though often confused, depth of focus and focal length serve different functions in laser welding. Focal length refers to the distance from the lens to the point where the laser beam converges to its smallest diameter, known as the focal spot. In contrast, depth of focus pertains to the tolerance range over which the laser remains effective without needing re-adjustment of the focal length. This is particularly important in applications demanding precise weld penetration, such as in the automotive or aerospace industries.

For instance, in applications using Swivel Optics with Telescopic Lens or the Motor-driven Turning Device, controlling the laser welding focal length and depth of focus directly influences weld quality. A shorter focal length generally means a smaller depth of focus, which may necessitate additional adjustments to maintain consistent power density across varying material thicknesses.

In practical terms, a laser system with a focal length of 100 mm might have a depth of focus of ±1 mm, depending on the beam quality and lens configuration. This narrow range requires precise control and alignment, especially in high-speed welding scenarios with speeds up to 10 m/min, to ensure consistent weld penetration and minimize defects.

Manufacturing engineers can leverage the depth of focus to enhance the adaptability of their welding operations, especially when working with complex geometries or materials with varying thicknesses. By optimizing this parameter, Sigma Laser systems ensure that welds remain robust and reliable, reducing the need for rework and enhancing productivity.

Compliance with standards such as ISO 15609-4:2009 and DIN EN ISO 15614-11:2002 is crucial in maintaining welding quality and ensuring that the depth of focus is adequately managed to meet industry specifications.

Ultimately, a nuanced understanding of how depth of focus interacts with focal length is crucial for achieving superior weld quality and operational efficiency. This knowledge empowers procurement managers and technical buyers to make informed decisions when selecting laser welding systems tailored to their specific industrial needs.

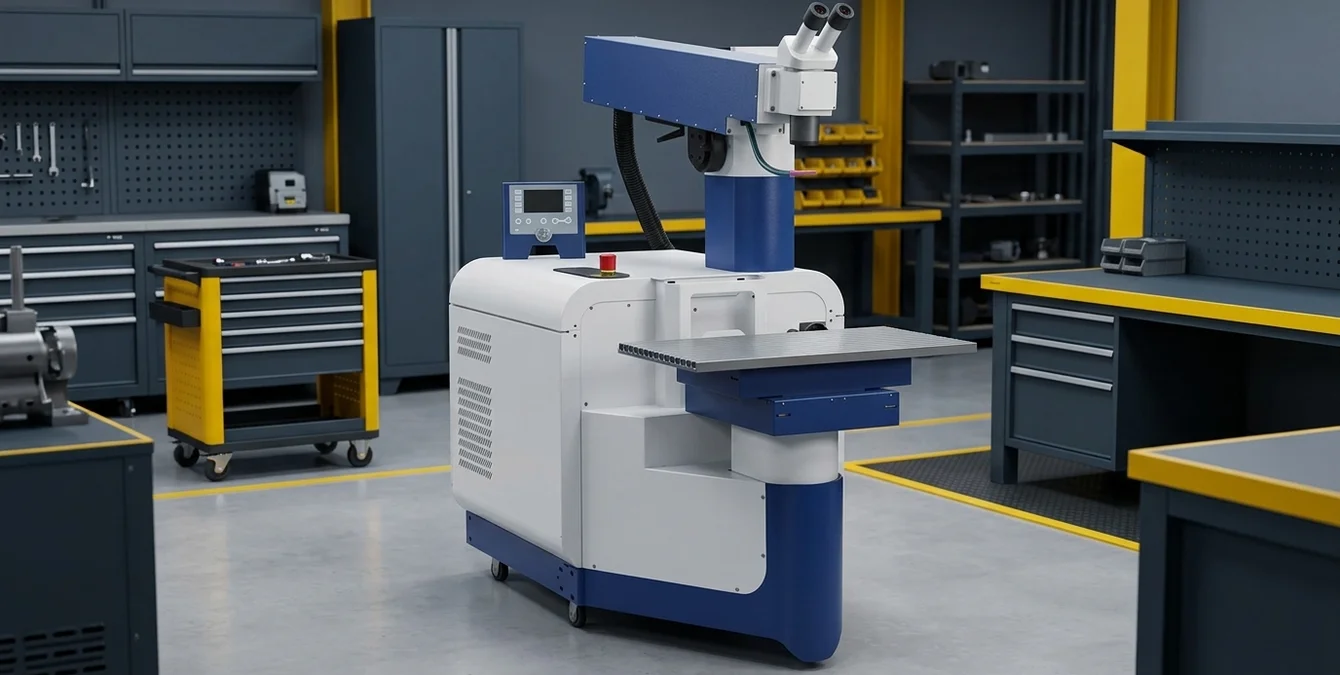

Which Focal Lengths are Recommended for Different Materials?

In precision laser welding, choosing the right focal length is key to optimizing weld quality and efficiency. The focal length affects the depth of focus, which in turn influences the power density and weld penetration capabilities of the laser beam. For industries using Sigma Laser’s advanced systems like the Sidanus Light or Sineo Fibre, understanding the appropriate focal length for each material is essential for achieving superior results.

Focal Length for Steel Welding

Steel is widely used in the automotive, aerospace, and construction industries, and requires specific focal length considerations due to its thermal conductivity and melting point. For most steel welding applications, a focal length between 100mm and 150mm is recommended. This range provides an optimal balance between depth of focus and power density, ensuring effective weld penetration while maintaining surface integrity.

• For thick steel plates, using a focal length closer to 150mm enhances penetration depth, which is ideal for applications in heavy machinery manufacturing. Typical laser power settings for such applications range from 3 kW to 6 kW, with welding speeds between 0.5 and 1.5 meters per minute, depending on the steel grade and thickness.
• In contrast, thinner steel sheets, often used in automotive bodywork, benefit from shorter focal lengths around 100mm, where precision and control are crucial. Here, power settings might range from 1 kW to 3 kW, with welding speeds up to 3 meters per minute to minimize heat-affected zones (HAZ) and ensure high-quality surface finishes.

With Sigma Laser’s systems featuring Swivel Optics and Z-Axis Module, engineers can easily adjust the focal length to meet specific steel welding requirements, adhering to ISO 9001 and DIN EN ISO 14732 standards. The beam quality (M²) typically ranges from 1.1 to 1.5, ensuring high precision and repeatability in demanding industrial environments.

Focal Length for Aluminum and Titanium

Aluminum and titanium, known for their lightweight and high strength-to-weight ratio, are common in aerospace and high-performance automotive engineering. However, their reflective surfaces and thermal properties require careful consideration of laser welding focal length.

For aluminum, a focal length of 75mm to 125mm is typically advised. The shorter focal length helps manage aluminum’s high thermal conductivity, preventing excessive heat dispersion and ensuring precise welds. Sigma Laser’s Sineo Fibre system, with its Super Pulse Technology (SPT), enhances control over the welding process, providing consistent results even in challenging conditions. Typical welding speeds for aluminum range from 1 to 2 meters per minute, with laser power settings between 2 kW and 4 kW to accommodate various aluminum alloys such as 6061 and 5083.

Titanium, used in critical applications requiring corrosion resistance, benefits from a focal length between 100mm and 125mm. This range supports adequate power density while facilitating the formation of strong, defect-free welds essential in medical devices and aerospace components. Welding speeds for titanium are generally slower, around 0.5 to 1 meter per minute, with power levels from 1.5 kW to 3 kW, to control the HAZ and avoid oxidation.

Engineers using Sigma Laser’s advanced technology can achieve optimal welding conditions by adjusting focal lengths to suit specific material properties, ensuring high-quality outputs across diverse industrial applications. Compliance with standards such as ISO 15609-4:2009 and DIN EN ISO 15614-11:2002 ensures that welding processes meet stringent quality and safety requirements.

Can Focal Length Influence Welding Speed and Power Density?

In the realm of precision laser welding, particularly with advanced systems such as Sigma Laser’s Sidanus Light and Sineo Fibre, the concept of laser welding focal length is crucial for optimizing welding speed and power density. Adjusting the focal length can significantly influence weld quality and efficiency, making it a critical parameter for welding engineers aiming to enhance industrial applications.

Focal Length and Welding Speed

Focal length, the distance between the lens and the workpiece, directly impacts welding speed. A shorter focal length can concentrate the laser beam into a smaller spot size, increasing intensity and allowing for rapid welding speeds. This is particularly beneficial in high-speed industrial settings where productivity is paramount. Systems like Sigma Laser’s Swivel Optics with Telescopic Lens are engineered to offer variable focal lengths, enabling dynamic adjustments to meet specific welding requirements.

However, a shorter focal length can also reduce the depth of focus, potentially compromising weld penetration in thicker materials. Therefore, engineers must balance the need for speed with the material’s thickness and the desired weld characteristics. For thicker materials, a longer focal length may be advantageous, providing a greater depth of focus and ensuring robust weld penetration, albeit at a reduced welding speed.

In practice, welding speeds can range from 0.5 m/min to 10 m/min depending on the material and laser power, which typically varies from 500 W to 10 kW in industrial applications. The depth of focus is often a few millimeters, necessitating precise control over the focal position, especially when welding materials like stainless steel (e.g., AISI 304) or aluminum alloys (e.g., 6061-T6).

Power Density Considerations

Power density, defined as the laser power per unit area, is another critical factor influenced by focal length. A shorter focal length increases power density, as the laser energy is concentrated over a smaller area, which can enhance weld penetration and quality. This is crucial when working with challenging materials or when high precision is required, such as in aerospace or automotive industries.

Conversely, while a longer focal length reduces power density, it offers a broader depth of focus, which can be beneficial for applications requiring consistent weld quality over varying material thicknesses. The use of Sigma Laser’s Super Pulse Technology (SPT) can also compensate by delivering high peak power in short bursts, maintaining high power density even with longer focal lengths.

Typically, power densities in laser welding can exceed 10^6 W/cm², depending on the focal length and beam quality, often characterized by an M² value of less than 1.2 for fiber lasers. This allows for effective welding of high-strength steels and nickel-based alloys, where precise control over the heat-affected zone (HAZ) is critical to maintain material properties.

Ultimately, understanding the trade-offs of focal length adjustments is essential for welding engineers aiming to optimize their processes. By leveraging advanced technologies like Swivel Optics and SPT, engineers can tailor the focal length to balance speed, power density, and weld quality, ensuring efficient and effective laser welding operations.

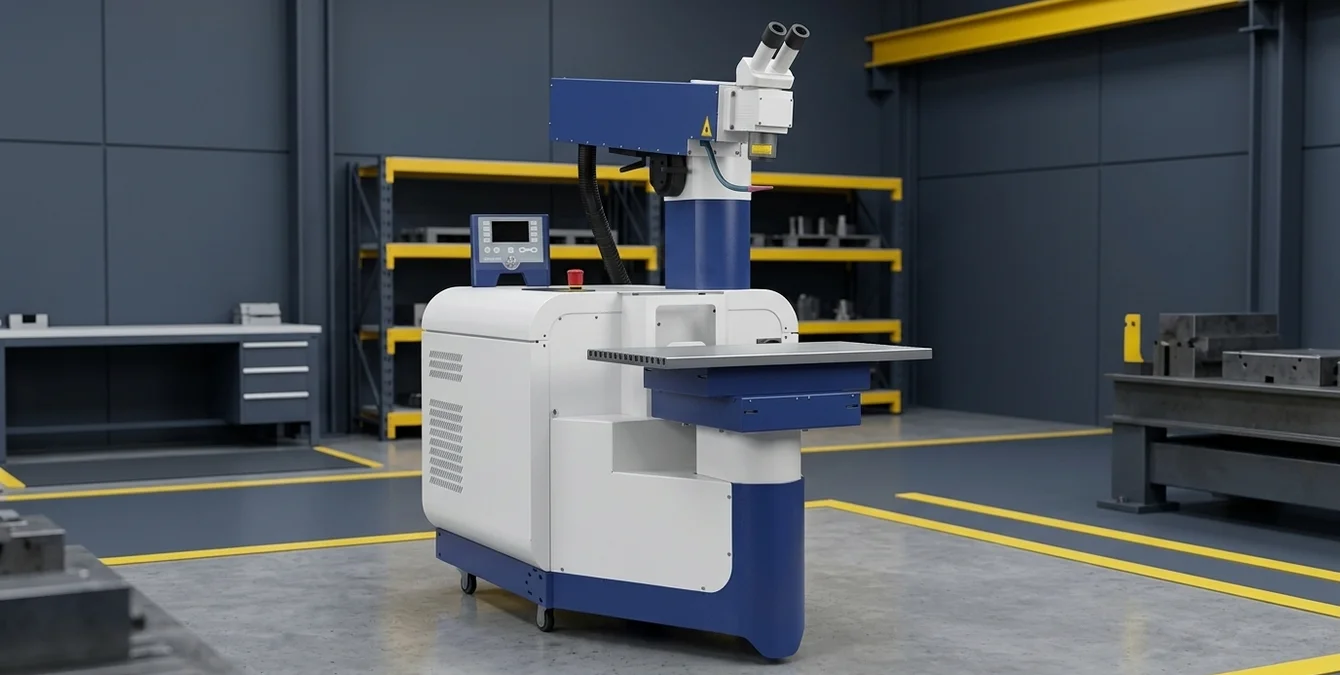

Optimizing Focal Length for Enhanced Weld Penetration

In laser welding, optimizing the focal length is crucial for achieving the desired weld penetration, a key factor in ensuring the structural integrity and strength of welded joints. By precisely managing the laser welding focal length, engineers can control power density and the depth of focus, directly influencing weld quality. Sigma Laser’s advanced systems, such as the Sidanus Fibre and Sirius Light, are engineered to provide precision in these parameters, allowing for superior weld results in various industrial applications.

Typical laser welding systems operate with power ranges from 500 W to 10 kW, and focal lengths can vary from 100 mm to 500 mm, depending on the application and the material being welded. The beam quality, often expressed as M², is crucial for maintaining a tight focus and is generally expected to be less than 1.2 for high-precision applications.

Strategies for Optimal Weld Penetration

For effective weld penetration, it is essential to align the focal length with the material thickness and type. This alignment ensures that the laser beam is focused correctly, providing maximum power density at the weld point. Utilizing technologies like Super Pulse Technology (SPT) and Swivel Optics with Telescopic Lens, offered by Sigma Laser, can enhance focal length adjustments, accommodating different welding scenarios and materials. These technologies provide flexibility and precision, allowing for tailored adjustments in real-time, which is crucial for maintaining consistent weld quality across diverse manufacturing environments.

When welding common industrial materials such as stainless steel (e.g., 304, 316 grades) or aluminum alloys (e.g., 6061, 7075), the focal length must be carefully adjusted to account for their thermal conductivity and reflectivity. Typically, the welding speed can range from 0.5 m/min to 5 m/min, with penetration depths varying from 1 mm to 10 mm, depending on the material and laser settings.

Practical Tips for Engineers

• Conduct initial tests with varying focal lengths to determine the optimal setting for specific materials and thicknesses.
• Utilize Sigma Laser’s Z-Axis Module to fine-tune focal positioning, enhancing the depth of focus for complex welding tasks.
• Regularly calibrate your laser system to maintain precision in focal adjustments, ensuring consistent weld penetration.
• Consider integrating the Motor-driven Turning Device to facilitate continuous welding on round or irregular surfaces, optimizing focal length dynamically.
• Ensure compliance with safety standards such as IEC 60825-1:2014 to mitigate risks associated with laser operations.

By implementing these strategies and utilizing advanced technologies from Sigma Laser, welding engineers can achieve enhanced weld penetration, leading to improved weld integrity and performance. These practices not only optimize manufacturing processes but also ensure compliance with industry standards such as ISO 9001 and DIN EN ISO 14732, which are critical in competitive European markets.
