Swivel Optics for Laser Welding | 360° Beam Control & Telescope Lens

Name: Swivel Optics for Laser Welding | 360° Beam Control & Telescope Lens | Sigma Laser
Brand: Sigma Laser

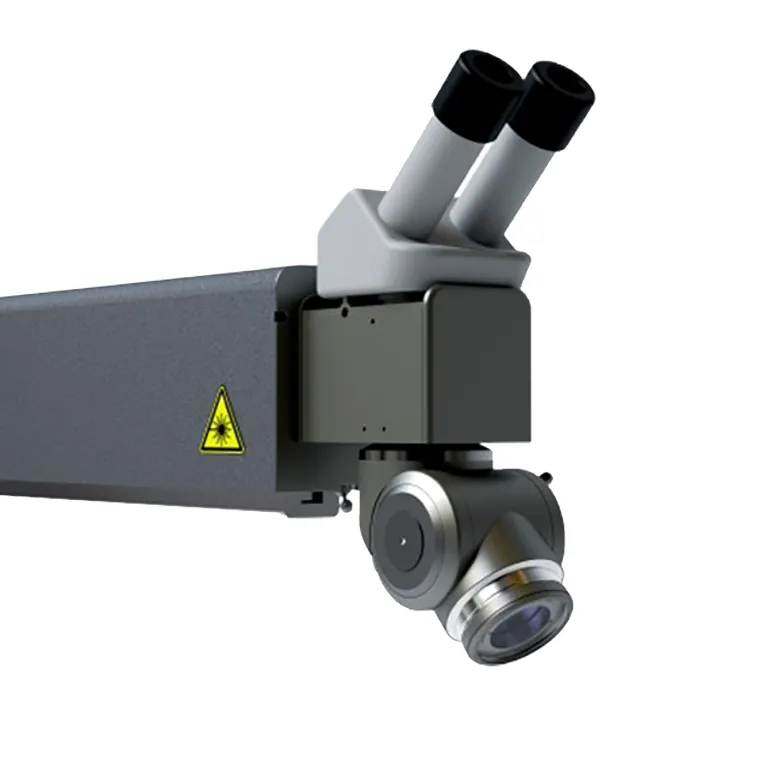

The Swivel Optics is a high-precision optical accessory engineered to tackle the challenges of laser welding in constrained or non-linear spatial environments. Whether you’re welding vertically, overhead, or at an angle, this flexible optic system gives you total control and full mobility in every direction.

With a 360° swivel range in all spatial directions, this tool ensures superior beam deflection capabilities, allowing users to access and weld even the most challenging areas on large industrial workpieces. The integrated telescope lens, available in 100 mm, 200 mm, or 300 mm focal lengths, allows users to optimize the focal point based on material thickness and joint type.

By integrating manual rotation of ±30°, the Swivel Optics head also supports the creation of fillet welds and inclined welds, making it an indispensable component for industries like aerospace, shipbuilding, and automotive manufacturing where multi-angle weld precision is a necessity.

Whether upgrading an existing Sigma Laser system or adding functionality to a new one, the Swivel Optics is the perfect modular enhancement to increase flexibility, reduce repositioning time, and maintain exceptional welding accuracy in every orientation.

Quick Access to Sections:

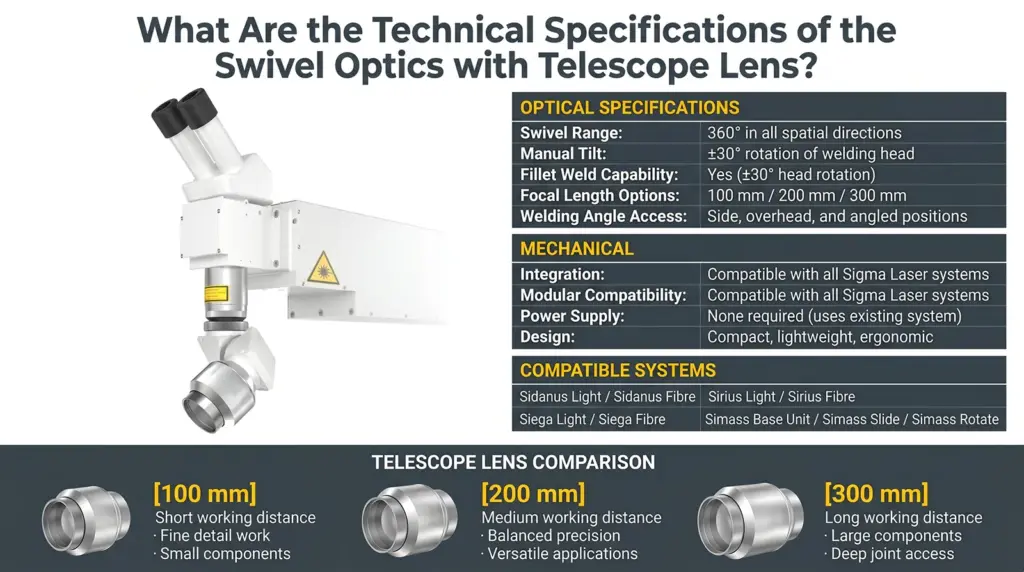

The Swivel Optics module is designed to provide total beam flexibility for laser welding systems. Below are the detailed technical specifications of this accessory:

Feature	Specification
Swivel Range	360° rotation in all spatial directions
Beam Orientation Control	Manual operation via flexible optical head
Fillet Weld Capability	Yes – ±30° rotation of the welding head
Focal Length Options	100 mm, 200 mm, 300 mm telescope lenses
Welding Angle Access	Supports side, overhead, and angled welding positions
Integration	Compatible with Sigma Laser systems
Modular Compatibility	Fully integrates with motion units (e.g., Simass, Sidanus)
Application Use Cases	Large workpieces, complex geometries, vertical surfaces

The Swivel Optics module enhances the flexibility and accessibility of laser welding processes, especially for complex geometries or hard-to-reach positions. It is a vital upgrade for manufacturers requiring multi-angle welding without repositioning the workpiece.

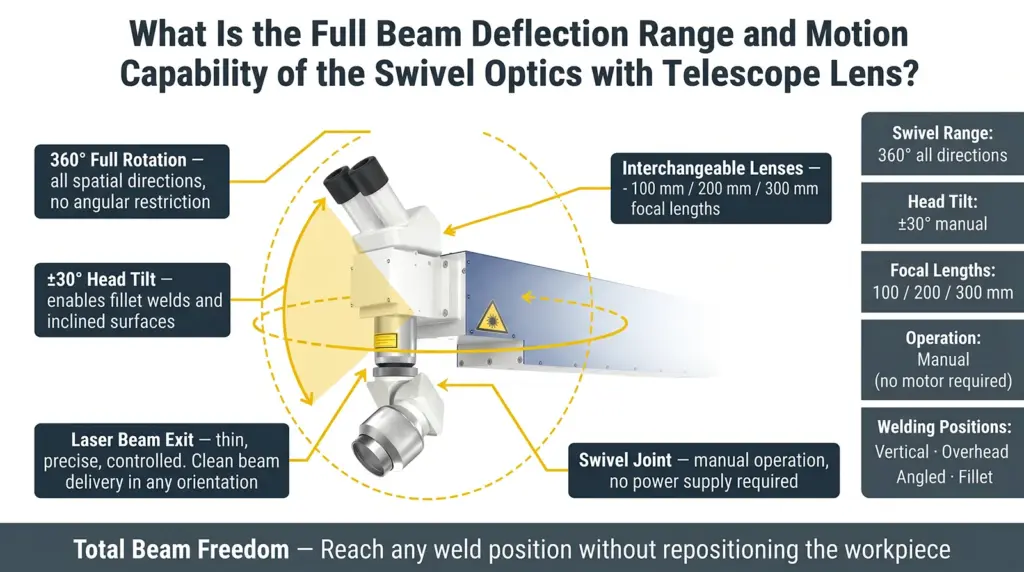

Beam Swiveling & Range of Motion

Full 360° Beam Deflection
The optics unit allows for complete rotation in every spatial direction, enabling beam alignment from any angle — ideal for working on large or complex parts.
Manual Tilt Capability
The welding head itself can be manually rotated by ±30°, allowing for fillet welds and angled welds on vertical or overhead surfaces without adjusting the base unit.

Telescope Lens Options

Interchangeable Focal Lengths
Equipped with a telescopic lens system, this module supports focal lengths of 100 mm, 200 mm, and 300 mm, which allows users to optimize the laser beam focus based on workpiece size and material.
Quick-Swap Compatibility
The lenses can be swapped easily, ensuring minimal downtime and flexibility in adapting to different project needs.

Integration & Compatibility

Modular System Compatibility
Seamlessly integrates with Sigma Laser systems such as Simass, Sidanus, and Sirius models — especially in setups with advanced motion units (e.g., motor-driven axes or rotating devices).
No Additional Power Supply Needed
The module operates through existing system controls, requiring no independent electrical source.

Dimensions & Mechanical Design

Compact and Ergonomic Design
Designed for easy handling and minimal space requirements inside the welding chamber.
Lightweight Construction
Ensures ease of manual adjustment during operation without fatigue, enhancing user control and positioning accuracy.

The Swivel Optics system is a high-precision, manually adjustable optical module that empowers welders to access areas previously unreachable by fixed-beam systems. With full 360-degree beam control and telescopic lens flexibility, it supports complex applications across medical devices, aerospace components, and custom fabrication.

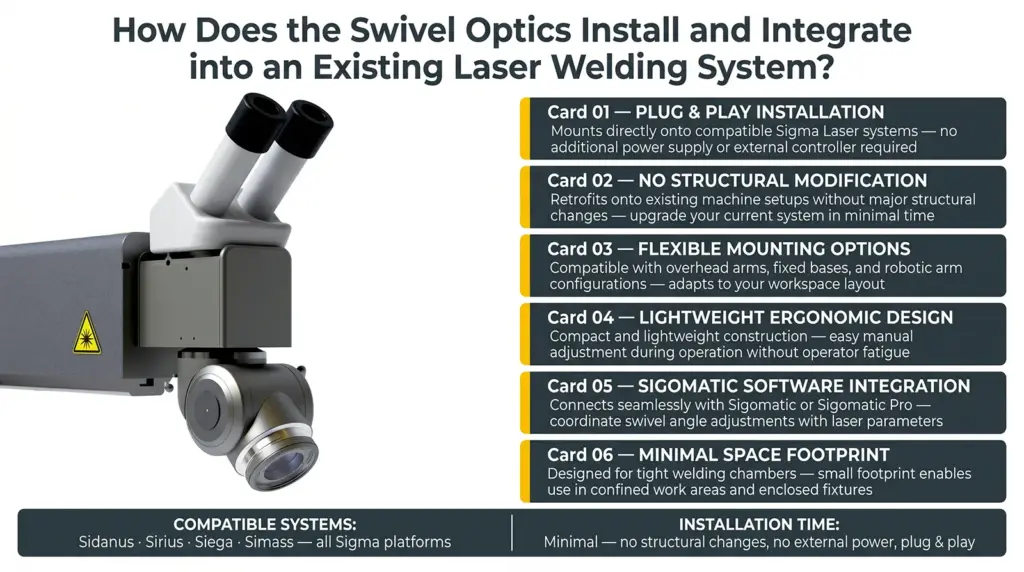

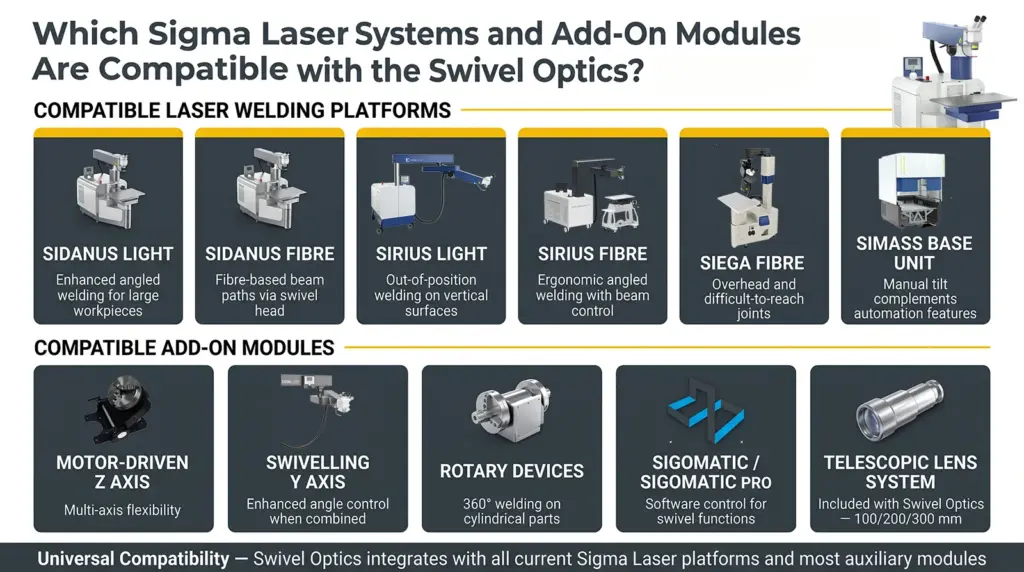

The Swivel Optics module is designed with modular adaptability in mind. It integrates effortlessly into various Sigma Laser welding platforms and auxiliary motion systems, enabling greater welding flexibility without complex setup.

Compatible Systems

Laser Welding Platform	Compatibility	Details
Sidanus Light	✔️ Fully Compatible	Allows enhanced angled welding for large workpieces.
Sirius Light	✔️ Fully Compatible	Optimizes out-of-position welding on vertical surfaces.
Siega Light	✔️ Fully Compatible	Ideal for overhead and difficult-to-reach joints.
Sidanus Fibre	✔️ Compatible	Works with fibre-based beam paths via swivel head.
Sirius Fibre	✔️ Compatible	Supports ergonomic angled welding with beam control.
Simass Base Unit	✔️ Modular Integration	Manual tilt complements automation features.

Compatible Add-On Modules

Add-On Module	Compatibility	Integration Notes
Motor-Driven Z Axis	✔️ Compatible	Enables multi-axis flexibility.
Swivelling Y Axis	✔️ Highly Compatible	Enhanced angle control when used together.
Rotary Devices	✔️ Compatible	Ideal for 360° welding on cylindrical parts.
Telescopic Lens System	✔️ Integrated	Lens included with Swivel Optics itself.
Sigomatic / Sigomatic Pro	✔️ Control Interface	Manual beam adjustment supported via software views.

Summary

Swivel Optics is universally compatible with all current Sigma Laser platforms and most auxiliary modules. Whether paired with light-pumped or fibre laser systems, it provides unmatched versatility for manufacturers seeking out-of-position or multi-angle welding capabilities.

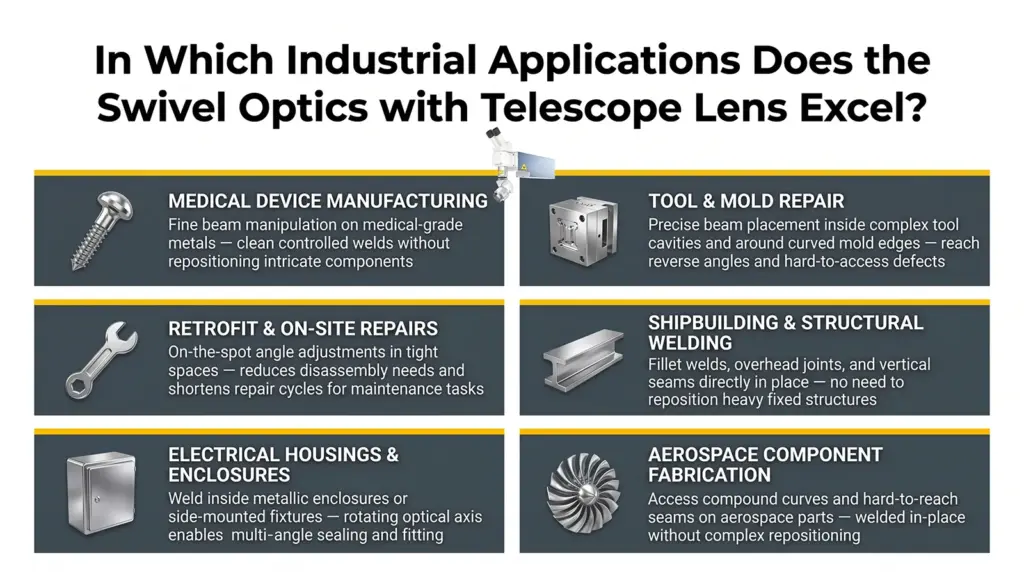

Swivel Optics dramatically increases the accessibility and flexibility of laser welding systems, allowing operators to work on challenging geometries, non-horizontal surfaces, and confined spaces with high precision.

laser welding in medical devices and instruments

Medical Device Manufacturing

Medical devices often have intricate components with small or curved surfaces. Swivel optics allows fine beam manipulation for clean, controlled welds on medical-grade metals without needing to reposition the entire part.

Tool and Mold Repair

Swivel Optics enables precise laser beam placement inside complex tool cavities or around curved mold edges. It allows repair of hard-to-reach defects and welding in reverse angles, improving tool longevity.

Retrofit and On-Site Repairs

In maintenance and retrofit scenarios, welders often encounter limitations in space and angle. Swivel Optics allows on-the-spot angle adjustments, reducing disassembly needs and shortening repair cycles.

Shipbuilding and Structural Welding

For heavy and fixed structures where repositioning workpieces is impractical, Swivel Optics allows welders to adjust beam direction instead, enabling fillet welds, overhead joints, or vertical seams directly in place.

Electrical Housings and Enclosures

Welding inside metallic enclosures or on side-mounted fixtures is made possible by the rotating optical axis, especially for enclosure assemblies that involve multi-angle sealing or fitting.

laser welding in aerospace manufacturing

Aerospace Component Fabrication

In aerospace, where components may feature compound curves or must be welded in-place, Swivel Optics provides vital freedom of movement to access hard-to-reach seams or angled surfaces.

Key Advantages Across Applications

360° accessibility to complex or confined surfaces
No need to reposition heavy or delicate parts
Supports fillet, inclined, or vertical welds with ease
Perfect for high-mix, low-volume production environments
Improves operator comfort and safety in awkward positions

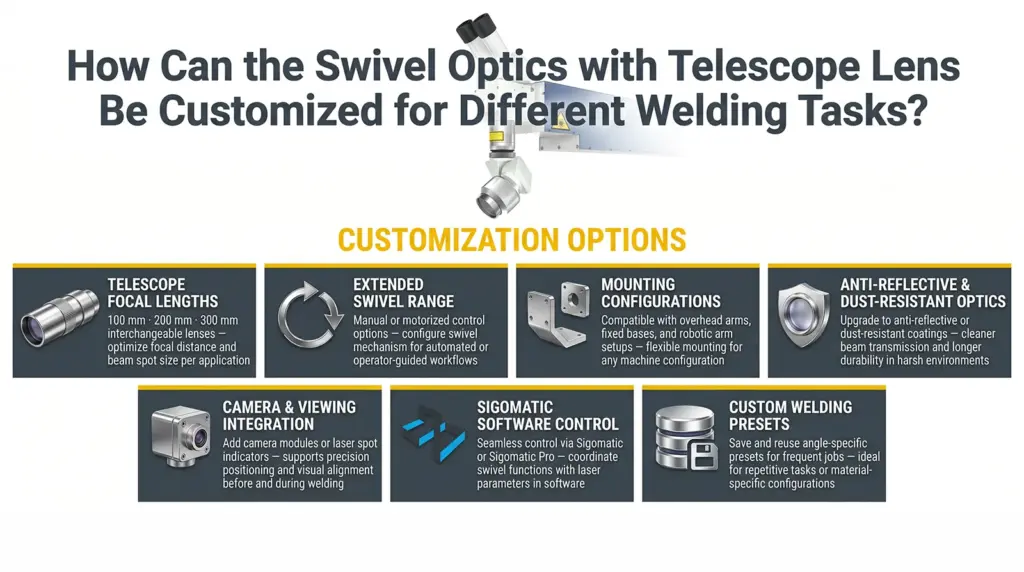

Tailor the Optics to Your Welding Challenges

Swivel Optics can be adapted to meet a wide range of welding scenarios and part geometries. Whether you’re working on miniature components or large industrial parts, the system offers modular and customizable configurations to boost accessibility, control, and quality.

Available Customizations:

Telescope Lens Focal Lengths:
Choose between 100 mm, 200 mm, or 300 mm lenses depending on your working distance, focus precision, and beam spot size needs.
Extended Swivel Range:
Fine-tune the swivel mechanism for manual or motorized control, based on your workflow — ideal for both automated and operator-guided welding systems.
Mounting Configurations:
Flexible mounting options for various machine setups — compatible with overhead arms, fixed bases, or robotic arms.
Material Coatings and Optics:
Upgrade to anti-reflective or dust-resistant optics for cleaner beam transmission and longer durability in challenging environments.
Integration with Viewing Systems:
Add camera modules or laser spot indicators to support precision positioning and visual alignment before and during welding.

Optional Software & Controls:

Sigomatic or Sigomatic Pro Integration:
Seamlessly control swivel functions and lens adjustments through software, enabling coordinated motion with laser parameters.
Custom Welding Presets:
Save and reuse angle-specific presets for frequent jobs, especially beneficial for repetitive tasks or specific materials.

Swivel Optics is designed not just to solve immediate access issues, but to be part of a scalable and intelligent laser welding ecosystem. By combining the right physical adjustments with software-based intelligence, it empowers operators with maximum flexibility and efficiency.

Answers to common questions about the Swivel Optics for laser welding machines:

What are swivel optics used for in laser welding?

Swivel optics are designed to improve accessibility during laser welding, especially for hard-to-reach angles or overhead and vertical surfaces. They allow precise beam positioning in 360° directions, enabling high-quality welds even in challenging geometries.

Can swivel optics be retrofitted onto an existing laser welding system?

Yes. Swivel optics are engineered for seamless integration and can be retrofitted to compatible laser systems without major structural changes. This makes it easy to upgrade existing setups for more flexible welding tasks.

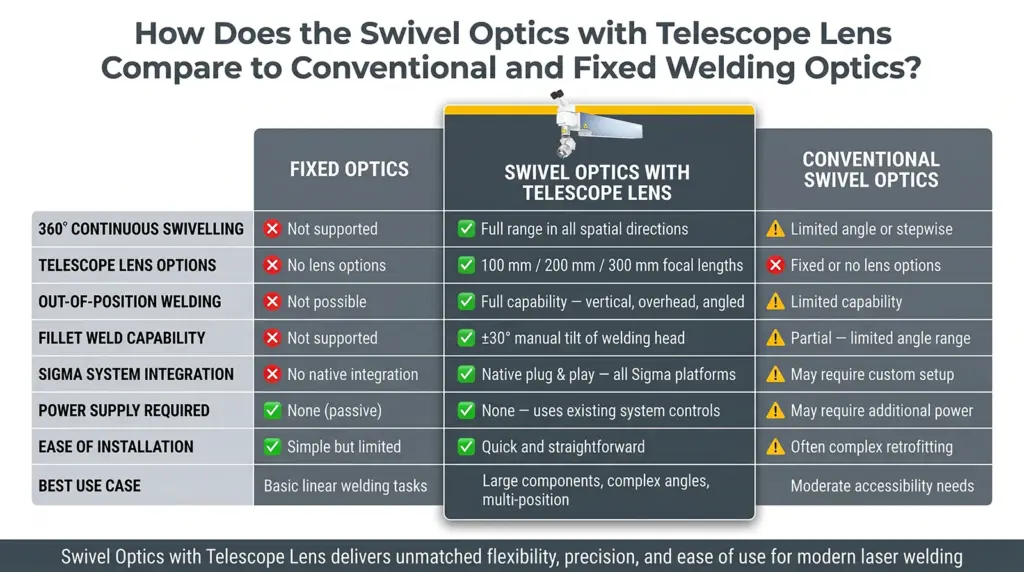

What is the difference between standard optics and swivel optics?

Standard optics provide a fixed beam path, limiting weld angles. Swivel optics, however, offer multi-directional beam deflection, allowing the welding head to pivot ±30° and enabling welds on inclined or vertical planes with greater control.

Are the telescope lenses interchangeable?

Yes. The Swivel Optics system supports interchangeable telescope lenses with focal lengths of 100 mm, 200 mm, and 300 mm. This allows customization of focus distance and beam characteristics depending on the application.

Do I need special software to operate the swivel optics?

While the optics can be manually operated, integration with Sigomatic or Sigomatic Pro software enables precise control, preset angles, and synchronized operation with laser settings — ideal for complex or repeatable welding tasks.

Is additional training required to use swivel optics effectively?

Basic training is recommended for manual operation, but full efficiency is achieved when integrated with software. With the Sigomatic interface, operators can quickly become proficient in setting up and using swivel optics for consistent results.

Best Practices for Setup, Automation, and Precision Control

This section offers practical guidance and resources to help users get the most out of their Swivel Optics system—ensuring safe, accurate, and efficient operation in demanding industrial environments.

How to Install and Align Swivel Optics on Your Laser Welding System
A step-by-step guide for properly mounting and calibrating the swivel optics to ensure precise beam delivery and maximum accessibility during welding.
Choosing the Right Telescope Lens: 100mm, 200mm, or 300mm?
An in-depth explanation of each focal length option and how to select the ideal lens for your specific application based on part size, working distance, and weld depth.
Maintenance Best Practices for Long-Term Performance
Essential daily and periodic maintenance tips to keep the swivel optics clean, responsive, and mechanically sound—covering lens cleaning, rotation axis lubrication, and optical inspection.
Troubleshooting Beam Misalignment and Tilt Angle Errors
Learn how to identify and correct beam positioning problems or inaccurate swivel angles that may affect weld quality, especially on angled or vertical surfaces.
Optimizing Access to Difficult-to-Reach Weld Areas
Strategies and setup tips to make the most of the swivel optics’ 360° range of motion—ideal for working on complex geometries and oversized parts.
Integrating Swivel Optics with Sigomatic Pro Software
A complete guide on connecting and configuring the swivel head with your control software for semi-automated or manual precision angle adjustments.

At Sigma Laser, our commitment to excellence doesn’t end at delivery. The Swivel Optics comes with a full suite of after-sales services designed to ensure optimal performance, operator confidence, and long-term value from your investment. Whether you’re a small workshop or a multinational manufacturer, our support ecosystem keeps your production running smoothly.

Performance Optimization Consulting

For customers with high-throughput needs or complex applications, we offer:

Process auditing
Automation optimization
Custom software macros
Fixture design and integration consulting

Installation & Commissioning

Our team provides on-site setup, system calibration, and full integration into your existing workspace or automation line. We ensure everything is optimized from day one — including safety checks, software configuration, and trial welds.

Spare Parts & Consumables

We maintain a well-stocked inventory of Replacement lamps, Optical components, Cooling units and Wear parts. Fast shipping worldwide ensures minimal downtime.

Remote Diagnostics & Global Support

From preventive maintenance to rapid troubleshooting, our global service team keeps your laser welding equipment running with minimal downtime through on‑site visits and secure remote diagnostics.

Operator Training & System Onboarding

Hands‑on training programs give your staff the skills to operate, maintain, and optimize Sigma laser welding systems safely and productively right from day one.

Extended Warranty & Lamp Breakage Protection

Enjoy long‑term peace of mind with comprehensive warranty coverage—including exclusive lamp break protection—for all light‑pumped laser welding systems.

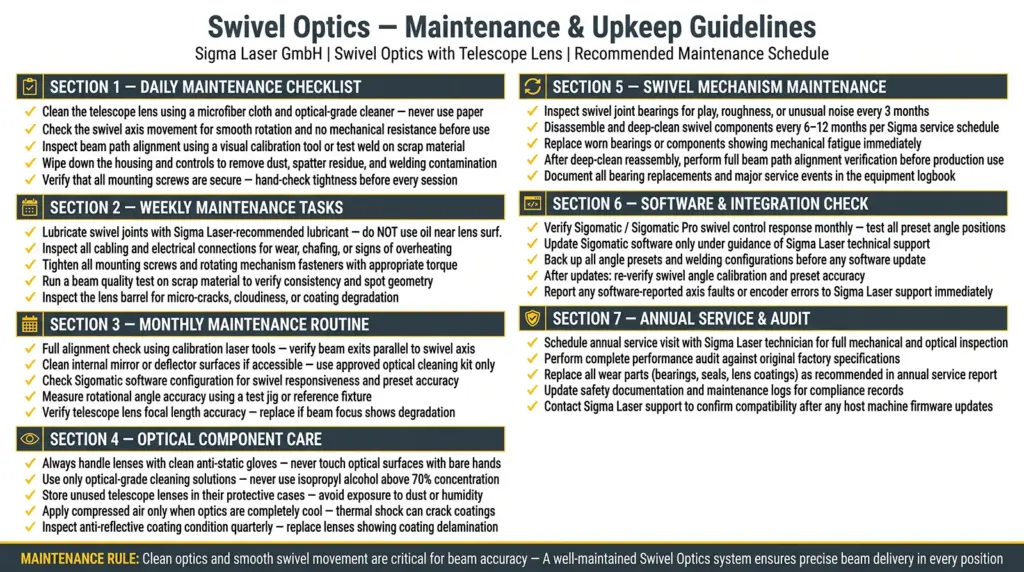

Proper maintenance of the Swivel Optics system is critical to ensure long-term precision, safety, and performance. Below is a complete guide covering daily, weekly, monthly, and long-term tasks—along with expert tips.

Daily Maintenance Checklist

Clean the telescope lens using a microfiber cloth and optical-grade cleaner.
Check the swivel axis movement for smooth rotation and no mechanical resistance.
Inspect beam path alignment using a visual calibration tool or test welds.
Wipe down housing and controls to remove dust and welding residue.

Weekly Maintenance Tasks

Lubricate swivel joints with manufacturer-recommended lubricant.
Inspect cabling and connections for wear or overheating.
Tighten all mounting screws and rotating mechanisms.
Run a beam quality test to check consistency in output.

Monthly Maintenance Routine

Full alignment check using calibration laser tools.
Clean the internal mirror/deflector surfaces if accessible.
Check software configuration for swivel responsiveness.
Measure rotational angle accuracy using a test jig.

Long-Term Preventive Maintenance

Disassemble and deep-clean swivel components every 6–12 months.
Replace worn bearings or components showing mechanical fatigue.
Perform full performance audit with factory specifications comparison.
Firmware/Software updates for the control unit and Sigomatic Pro.

Pro Maintenance Tips

Use compressed air only when optics are completely cool to avoid thermal shock.
Avoid any solvent not explicitly marked safe for optics.
Document all maintenance in a logbook to identify recurring issues early.
Consider a preventive service package from Sigma Laser for in-depth calibration and tune-up.

Summary

Consistent maintenance of the Swivel Optics ensures maximum accessibility, clean beam delivery, and precise angle control for complex welding tasks. Following this checklist prolongs equipment life and reduces downtime.

A Complete Safety Framework for Industrial Laser Welding with Motion Components Ensuring operator safety and system integrity is crucial when working with advanced motion components like the Swivelling Y Axis. This tilting mechanism introduces dynamic movement into the laser welding system, which, while improving flexibility and reach, also requires strict adherence to safety protocols. From mechanical precautions to proper handling of laser exposure during angled operations, these guidelines help reduce risks and maintain compliance with industrial safety standards. Whether you’re performing routine maintenance, adjusting tilt angles, or integrating the axis into your system, following the correct safety practices ensures smooth, injury-free operation and prolonged equipment life.

Laser Safety Classification

The Z Axis is used within Class 1 laser systems (fully enclosed), or optionally with Class 4 open setups under operator control.
Always verify the enclosure is properly sealed when operating in Class 1 mode.
Operators must never enter the machine’s movement range while the axis is powered on.

Personal Protective Equipment (PPE)

Laser safety goggles (wavelength-specific)
Anti-static gloves for handling wiring or electronics
Steel-toe safety shoes when working near moving modules
Tight-fitting clothing to avoid snagging in motion systems

Task	Recommended PPE
Routine operation	No PPE required under closed housing
Maintenance (open casing)	Laser safety goggles (1064 nm rated)
Welding setup adjustments	Safety gloves, protective sleeves
Handling heavy components	Safety shoes, cut-resistant gloves
Optical cleaning or inspection	Anti-static gloves and lens-safe cloths

Workspace Safety Requirements

Maintain a clear zone of at least 1 meter around the Z-axis system
Ensure firm, vibration-free mounting of the entire assembly
Install indicator lights showing active laser or axis movement status
Enclosures must include interlocked access doors

Electrical & Cooling System Safety

Only trained personnel should connect power supplies
Ensure ambient temperature and humidity remain within safe operating limits
Passive or active cooling elements (if any) must be kept dust-free
Never bypass safety fuses, relays, or grounding components

Software & Control Warnings

Use only official Sigomatic software for motion control
Always home the axis before running a new program
Do not interrupt or power down while axis is in motion
Update software only under guidance of technical support

Emergency Procedures

Emergency Stop Button must be within operator’s reach at all times
Have a CO₂ fire extinguisher nearby for electronics and laser equipment
In case of collision or jamming, immediately shut off main power and inspect axis alignment

Training & Access Control

Only certified operators should access system controls
Password-protect control software on shared workstations
Keep updated safety manuals and SOPs accessible to all personnel

Safety Summary

Safety in vertical motion laser systems is not optional — it’s a requirement for accuracy, uptime, and team well-being. Sigma Laser recommends following ISO 11553 and local machine safety standards.

Why the Swivel Optics with Telescope Lens Outperforms Conventional Welding Optics?

Swivel optics are essential for laser welding in challenging or hard-to-reach positions, but not all swivel systems offer the same level of performance and flexibility. Here’s how the Swivel Optics with Telescope Lens from Sigma Laser surpasses conventional optics solutions in versatility, precision, and integration.

Full 360° Beam Deflection in All Directions

Unlike many swivel optics limited to fixed or partial angular movement, this system offers continuous 360-degree swivelling in every spatial direction. This capability dramatically improves accessibility, especially for large or complex components where traditional optics fall short.

Precision Optics with Variable Telescope Lenses

Equipped with interchangeable telescope lenses (100 mm, 200 mm, or 300 mm focal lengths), the Swivel Optics adapts to various focal requirements. This flexibility ensures optimal beam focus and weld quality across diverse applications, from fine detail work to larger surface areas.

Designed for Difficult Welding Positions

The optics enable welding out-of-position or sideways on walls and overhead — scenarios that conventional fixed optics cannot handle easily. This greatly expands your operational envelope without the need to reposition heavy components.

Seamless Integration with Sigma Laser Systems

Fully compatible with Sigma’s laser platforms and control software, the Swivel Optics integrates smoothly without complicated retrofitting or additional controllers. This guarantees reliable, synchronized operation and faster setup times.

Competitive Comparison Table:

Feature / Device	Swivel Optics with Telescope Lens	Conventional Swivel Optics	Fixed Optics without Swivel
360° Continuous Swivelling	✅ Full range in all directions	⚠️ Limited angle or stepwise	❌ Not supported
Telescope Lens Options	✅ 100, 200, 300 mm focal lengths	❌ Fixed or no lens options	❌ No swivelling or zoom
Suitable for Out-of-Position Welding	✅ Yes	⚠️ Limited	❌ No
Integration with Sigma Systems	✅ Native, plug & play	⚠️ May require custom setup	❌ No native integration
Ease of Installation	✅ Quick and straightforward	⚠️ Often complex	✅ Simple but limited
Best Use Case	Large components, complex angles	Moderate accessibility	Basic linear welding tasks

Whether upgrading existing welding optics or outfitting a new system, the Swivel Optics with Telescope Lens delivers unmatched flexibility, precision, and ease of use—perfect for modern laser welding applications that demand versatility without compromise.

Why the Swivel Optics with Telescope Lens Is a Smart Upgrade for Precision Laser Welding Accessibility?

Unmatched Flexibility for Hard-to-Reach Welding Positions

The Swivel Optics with Telescope Lens transforms your laser welding setup by providing full 360-degree swivelling in every spatial direction. This capability enables welding at difficult angles—such as sideways on walls or overhead—where traditional fixed or limited-angle optics cannot reach effectively.

Precision Focus with Multiple Telescope Lens Options

Equipped with interchangeable telescope lenses (100 mm, 200 mm, and 300 mm focal lengths), the system offers tailored beam focusing for a wide range of applications. Whether working on fine details or large components, you can optimize weld quality and consistency with ease.

Seamless Integration with Sigma Laser Ecosystem

Designed specifically to integrate natively with Sigma’s laser platforms and control software, the Swivel Optics eliminates the need for complex retrofitting or external controllers. This ensures rapid installation, reliable communication, and synchronized operation within your production line.

Enhanced Productivity and Reduced Downtime

By enabling precise welding in out-of-position and confined spaces, this optic system reduces the need to reposition heavy workpieces or adjust fixtures repeatedly. The result is higher throughput, improved operator ergonomics, and minimized setup time.

Key Benefits at a Glance:

Full 360° Swivelling for maximum accessibility in all spatial directions
Multiple Telescope Lens Options for adaptable focal lengths and superior weld quality
Out-of-Position Welding Capability to handle challenging geometries effortlessly
Plug-and-Play Integration with Sigma laser systems and control interfaces
Compact and Robust Design built for industrial reliability and precision

Upgrade your laser welding optics to the Swivel Optics with Telescope Lens — the smart solution for versatile, high-precision welding in complex manufacturing environments.

Contacts

Location

Phone

Email

Follow us

Folge uns

Siga-nos

Síganos

Tilt and swivel optics 360° for Laser Welding

Engineered for precision tasksTechnical Specifications of Swivel Optics for laser welding machines
